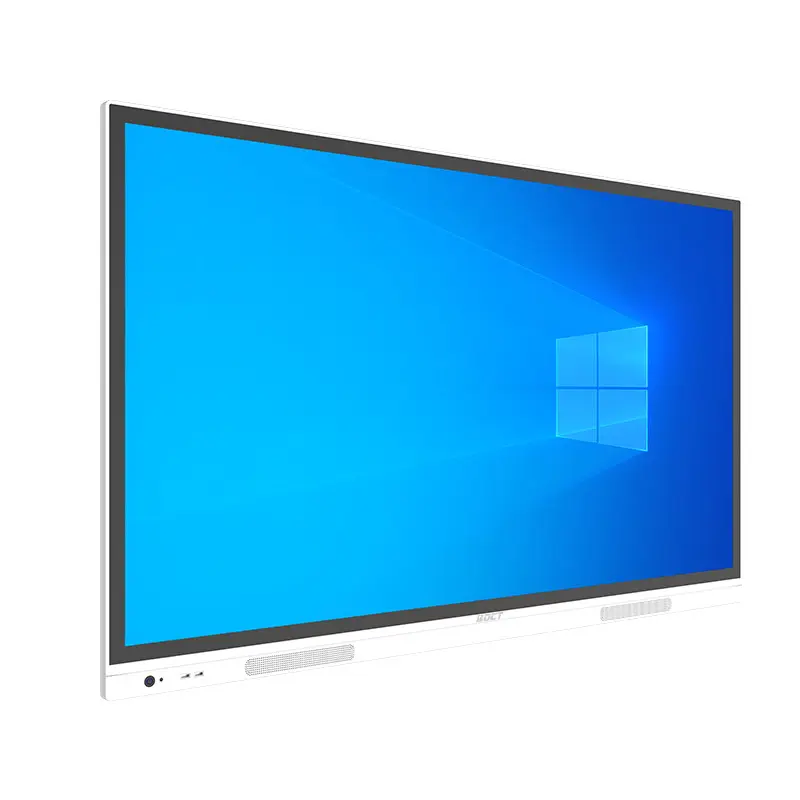

55\65\75\86\98 inches Smart Interactive Whiteboard LCD Touch Screen For Education
About Interactive Whiteboard
IWC series capacitive touch screen whiteboard has only 55inch and 65inch for now, but in future our size will be as the infrared touch model and spread to 75inch and 86inch, even bigger. It will be a trend and better solution in future for the classroom multimedia and conference video media.
True 4K LCD Display gets you a Ultra-clear viewing -
• 4K ultra high resolution truly restore every detail, immerse delicate picture quality.
• True 178° viewing angle makes no matter where you sit in the room, the image will always be clear
Superior Touch Experience
• The combination of active touch pen and passive capacitive touch screen makes much easier to write and draw. The optional smart pen is active pressure sensitive with level of 4096. 0mm writing height between the pen and touch screen makes people write just like on a paper.
• Compare with the traditional infrared technology, the data processing speed of capacitive touch is 100 times more, that takes us with very excellent writing experience.
• By up to 20 points of touch, you will be feedback with high responsive, lag-free multi-touch experience. This allows multi-students to write and a whole team to write at the same time together without any limits.
Annotate in any Interface (Android and Windows ) --It lets you make the annotation on any page. Very convenient and easy to record your inspiration.
Wireless Screen Interaction Freely
• Adopting the latest new connection and display way, no matter it is computers, mobile phones or tablets, you can project all on the big flat interactive whiteboard easily. At most it supports 4 signals through decoding technology.

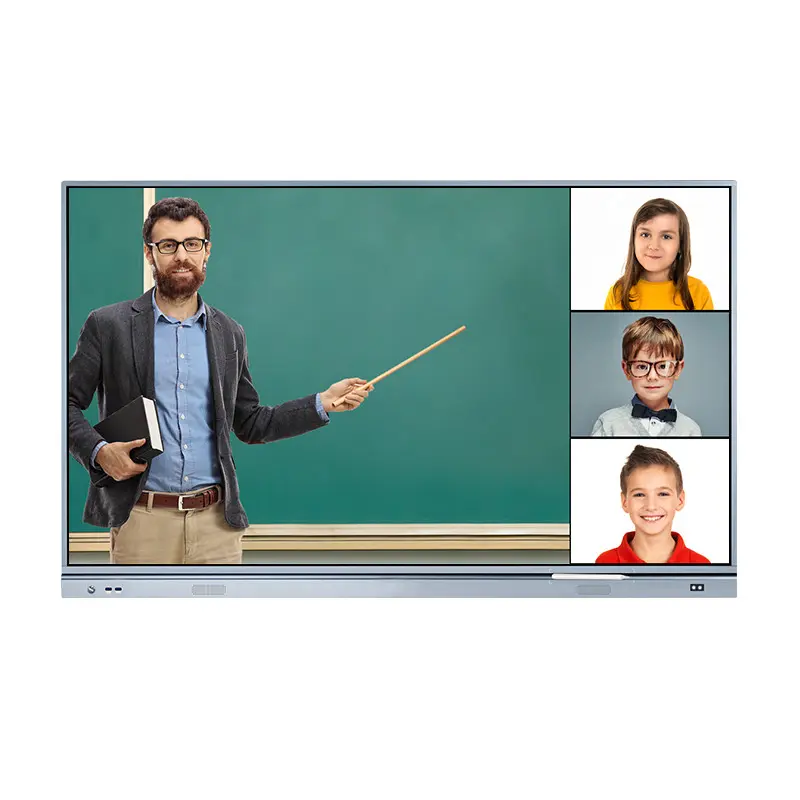

Video Conference
Bring your ideas into focus with engaging visuals and video conferences that illustrate ideas and encourage teamwork and innovation. The IWB empowers your teams to collaborate, share, edit and annotate in real-time, wherever they are working. It enhances meetings with distributed teams, remote workers, and employees on-the-go.
| Display | Display size | 55 65 75 86 98inch |
| LCD panel | 1209.6mm（H）×680.4 mm(V) | |
| Screen ratio | 16：9 | |
| Resolution | 3840×2160 | |
| Brightness | 300cd/m² | |
| Contrast | 4000:1 | |
| Color | 8-bit(D), 1.07 Billion colors | |
| Viewing angle | R/L 89 (Min.), U/D 89 (Min.) | |
| Life span | 30000hours | |
Solution | Operation system | Windows7/10（Optional OPS）&Android 8.0 |
| CPU | ARM A73x2+A53×2_1.5GHz | |
| GPU | Quad-core MaliG51 | |
| Ram | 2GB | |
| Rom | 32GB | |
| WIN system（Optional） | CPU | Intel I3/I5/I7 |
| Memory | 4G/8G | |
| Hard disk | 128G/256G | |
| Graphic card | Integrated | |
| Network | WIFI/RJ45 | |
| Touch screen | Type | Project capacitive |
| Touch points | 20 | |
| Drive | HDI free drive | |
| Touch surface material | Tempered glass | |
| Touch medium | Finger, touch pen | |
| Response time | <10ms | |
| System | Win,Linux,Android,Mac | |
Network | WiFi | 2.4G、5G |
| Wifi spot | 5G | |
Interface | Input | HDMI_IN×2、VGA_IN×1、VGA_AUDIO×1、RJ45×1、AV_IN×1、RS232×1、USB2.0×2、TF-Card×1、RF-IN×1 |
| Output | Earphone×1、Touch_USB×1、SPDIF×1 | |
Media | Format support | Video：RM、MPEG2、MPEG4、H264、RM、RMVB、MOV、MJPEG、VC1、FLVAudio：WMA、MP3、M4AImage：JPEG、JPG、BMP、PNGText： doc、xls、ppt、pdf、txt |
| Other | Menu Language | Chinese, English, Spanish |
| Speaker | 2×10W | |
| Installation | Wall mount, floor standing | |
| Color | Black, white | |
| Input voltage | AC200V~264 V/ 50/60 Hz | |
| Working power | ≤130W（without OPS） | |
| Standby | ≤0.5W | |
| Working environment | Temperature :0 ~ 40℃、Humidity 20%~80% | |
| Stock environment | Temperature : -10℃ ~ 60℃、Humidity 10% ~ 60% | |
| Product size | 1265 x 123 x 777mm (LxWxH) | |
| Package size | 1350 x 200 x 900mm (LxWxH) | |
| Weight | Net weight：32KGGross weight：37KG±1.5KG | |
| Accessory |
|
